DC MCB

DC MCB

• ID: MCB

• Category: DC Components

• Status: Con hang

• Viewed: 1107

• Price: ---

* Short-circuit protection
* Overload protection
* Close quickly
* high breaking capacity
* Isolation function
* Indication function of contact position
* Transparent cover designed to carry label.
* Support 35mm Din – rail installation
* Support top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type.
* Able to select electrical accessories and achieve distant indication of MCB condition: breaking, closed, and fault tripping.
* Able to select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release.
  • DC SPD 3P

    DC SPD 3P

    Giá: Liên hệ
    Detail

    Tình trạng: Còn hàng

    Consistent   pluggability(even for N/PE spark gap)  Own developed technology to manufacture MOV  Thermal disconnect device for each individual connector Optical,mechanical status indication for the individual arresters With or without floating remote indication contact Suitable for almost all network conflgurati ons  Din rail mountable (35 mm)
  • DC SPD 2P

    DC SPD 2P

    Giá: Liên hệ
    Detail

    Tình trạng: Còn hàng

    Consistent   pluggability(even for N/PE spark gap)  Own developed technology to manufacture MOV  Thermal disconnect device for each individual connector Optical,mechanical status indication for the individual arresters With or without floating remote indication contact Suitable for almost all network conflgurati ons  Din rail mountable (35 mm)

Detail: DC MCB

lectrical features
Rated current In 1-63A

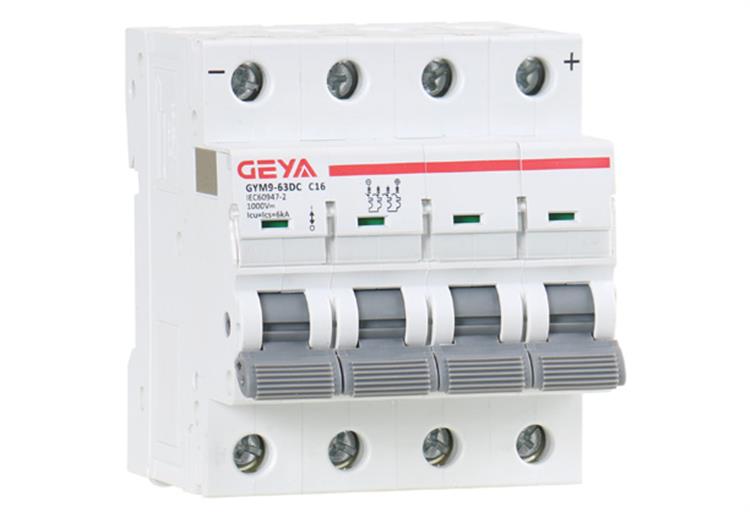

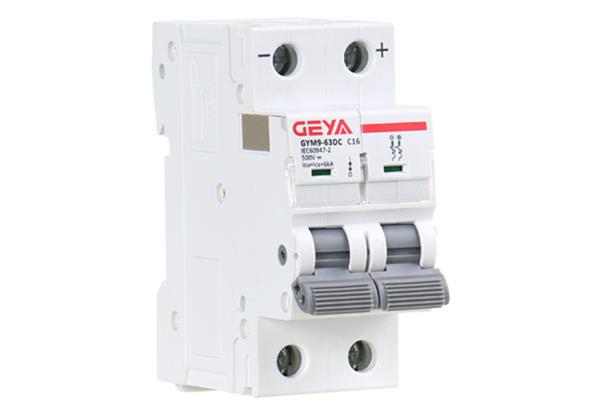

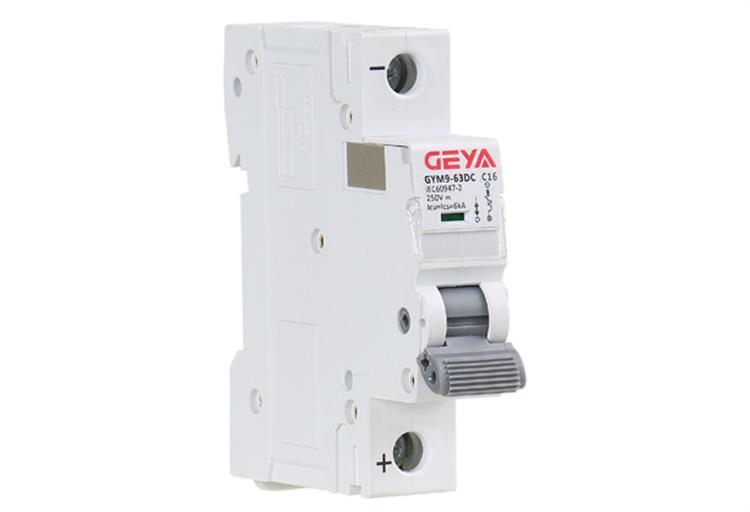

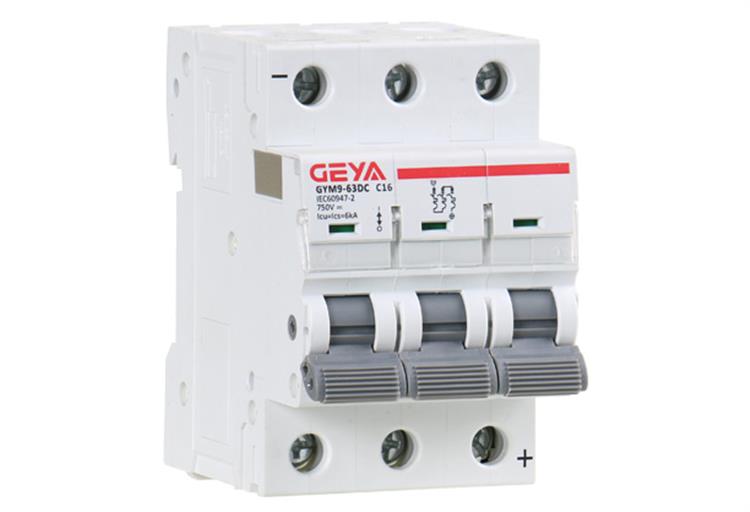

Poles 1P  2P  3P  4P
Rated voltage Ue 1P: 250V~ 2P:500V,

3P:750V,4P:1000V
Rated breaking capacity 6kA
Rated impulse withstand voltage(1.2/50) Uimp 6kV
Dielectric test voltage at and ind. freq.for 1min 2.5kV
pollution degree 2
Thermo-magnetic release characteristic B  :6In±20%；C ：12In±20%
Mechanical life 10000
Contact position indicator Yes
Installation
Protection degree IP20
Reference temperature for setting of thermal element 30℃
Ambient temperature (with daily average ≤35℃) -5~+40℃
Storage temperature -35~+70℃
Terminal Connection type Cable/Busbar
Terminal size top/bottom for cable 25mm
Tightening torque 3.0N
Connection Top and bottom
