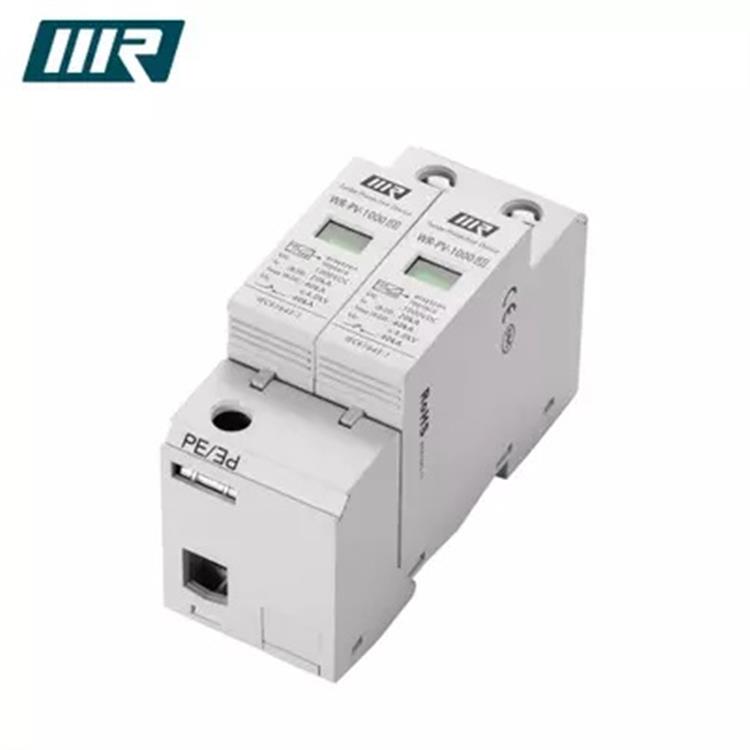

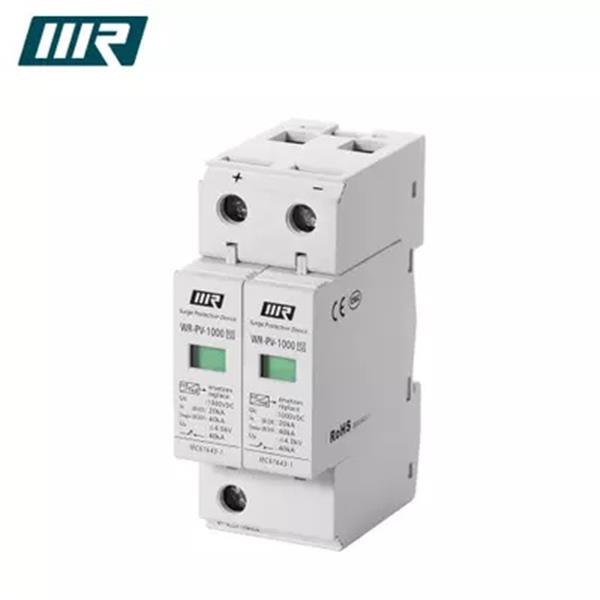

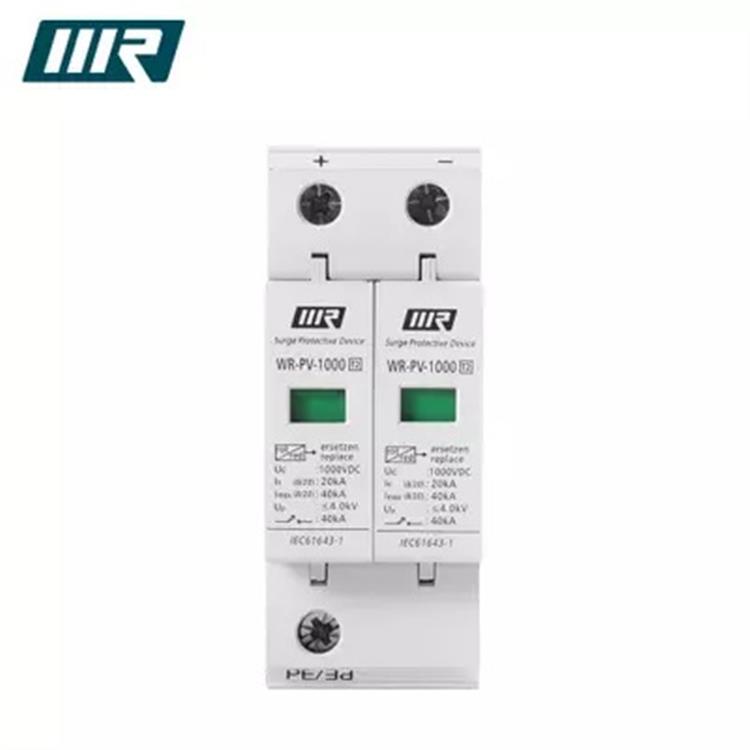

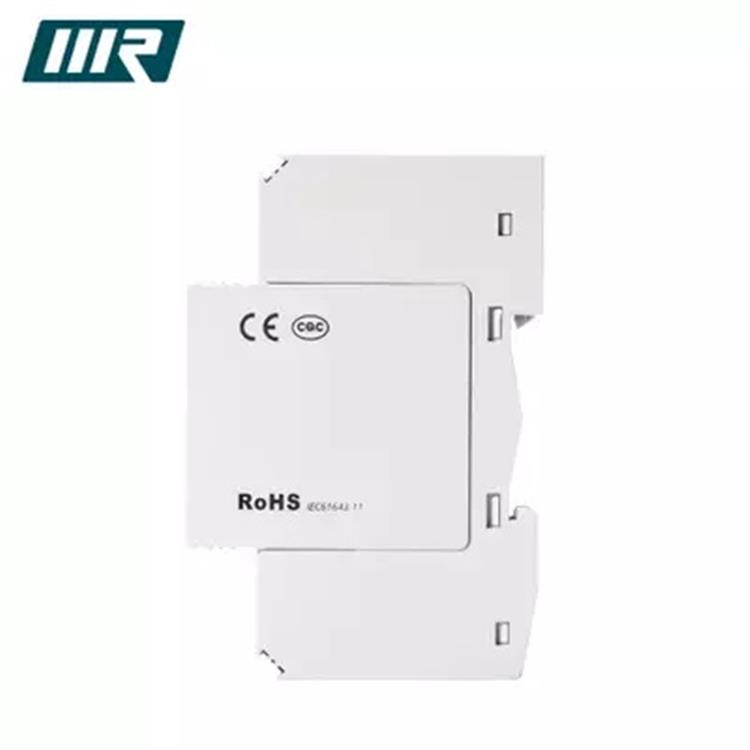

DC SPD 2P

DC SPD 2P

• ID: WR-PV 2P

• Category: DC Components

• Status: Con hang

• Viewed: 1183

• Price: ---

  • Consistent   pluggability(even for N/PE spark gap)

  • Own developed technology to manufacture MOV

  • Thermal disconnect device for each individual connector

  • Optical,mechanical status indication for the individual arresters

  • With or without floating remote indication contact

  • Suitable for almost all network conflgurati ons

  • Din rail mountable (35 mm)

  • DC SPD 3P

    DC SPD 3P

    Giá: Liên hệ
    Detail

    Tình trạng: Còn hàng

    Consistent   pluggability(even for N/PE spark gap)  Own developed technology to manufacture MOV  Thermal disconnect device for each individual connector Optical,mechanical status indication for the individual arresters With or without floating remote indication contact Suitable for almost all network conflgurati ons  Din rail mountable (35 mm)
  • DC MCB

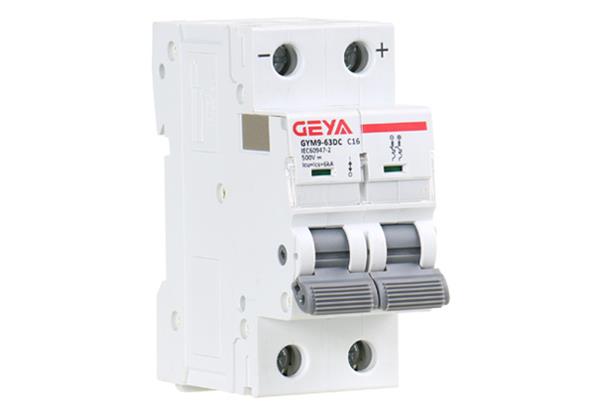

    DC MCB

    Giá: Liên hệ
    Detail

    Tình trạng: Còn hàng

    * Short-circuit protection * Overload protection * Close quickly * high breaking capacity * Isolation function * Indication function of contact position * Transparent cover designed to carry label. * Support 35mm Din – rail installation * Support top incoming and bottom ...

Detail: DC SPD 2P

Type WR-PV / 2P
Rated voltage (max.continuous a.c.voltage) [ Uc ] 800V   / 1000V /1200V
Nominal discharge current (8/20) [ ln ] 20kA
Maximum discharge current [ Imax ] 40kA
Voltage protection level [ Up ] ≤3.2kV / ≤4.0kV / ≤4.4kV
Response   time [ tA ] ≤25ns
Max.backup fuse 125A gL/gG
Operating temperature range [ Tu ] -40℃...+70℃
Cross-sectional area 1.5mm² ~   25mm² solid / 35mm² flexible
Mounting on 35mm DIN rail
Enclosure material Purple   (module)/light gray (base) thermoplastic,UL94-V0
Dimension 2 mod
Test standards IEC 61643-1; GB   18802.1; YD/T 1235.1
Certification CE    ROHS  ISO9001  CQC
Type of remote signalling contact Switching   contact
Switching capacity a.c 250V / 0.5A
Switching capacity d.c 250V / 0.1A;   125v/0.2A; 75v/0.5A
Cross-sectional area for remote signalling contact Max.   1.5mm² solid / flexible

DC SPD 2P
